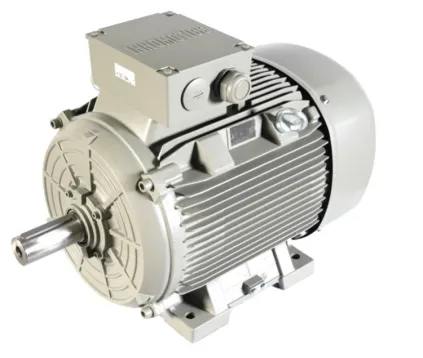

Usage:Provides driving force for the screw. 3 Grade,horizontal type Rational speed 1400rpm CE certificate,ISO Standard Standard voltage supply:380V,50HZ, 3 phase Guarantee period one year Brook(UK)/Siemens(DE)/GE(USA) as cutomized

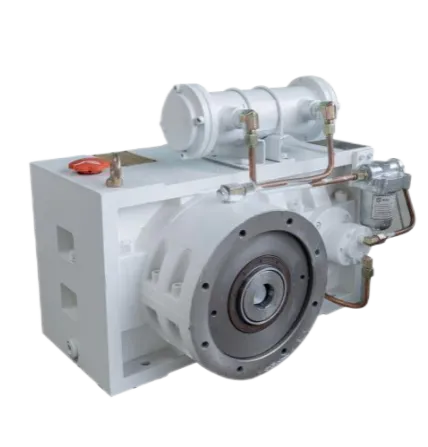

Usage:Provides a link between the screw and the motor. Hard tooth , high strength , oil pumpcooling type Gear Material:20CRMNTI, gearbox material:HT250 3. Gear accuracy : 6 grade Hardness:HRC58-62 Bearing: ZHJ and DYZV first class brand from China Oil sealer: TTO brand from Taiwan, China Ration speed: 1:10 Guarantee period one year

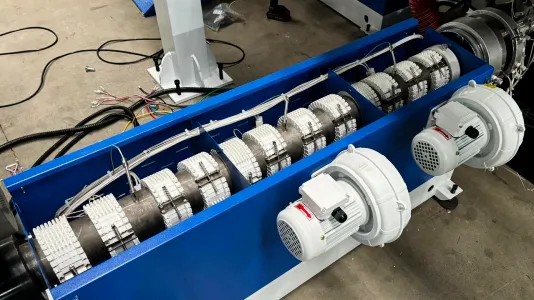

Usage:Cooling down the screw’s temperature to get more capacity Much bigger power , 240W First class brand from China Running safty. CE certification and ISO standard

Usage:Provides protection and insulation for the screw. Raw material: 38CrMoALA or SACM645 Nitriding depth:0.8mm Nitriding hardness: 1000HV Chromed hardness ≧950HV Chromed thickness:0.08mm Taiwan design screw and barrel Plastify excellence and fast, to blow film smoothly and glossiness

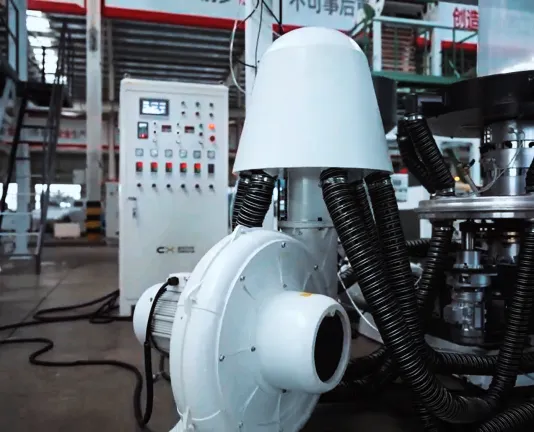

Usage: Provides stable and strong airflow to the airring. High pressure air wind cooling , less noisy but high cooling speed Cooling the film fast to keep the quality of the film Motor guarantee 3 years High quality wind pipe, can bearing high temperature from the die head

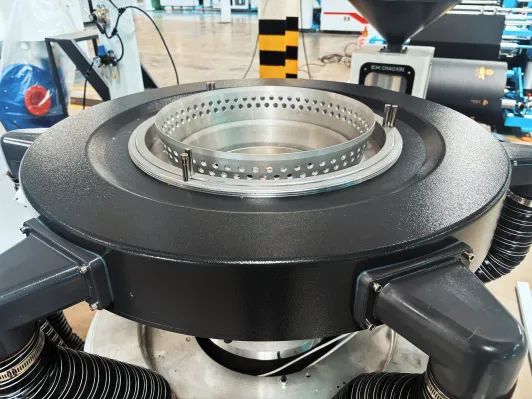

Usage:Provides uniform air flow for blown film bubbles. Double vent air ring Raw material: aluminum Compact structure to increase the discharge of air . Equal air discharge to make the film cooling faster and film bubble stable, no moving, to get final product flat.

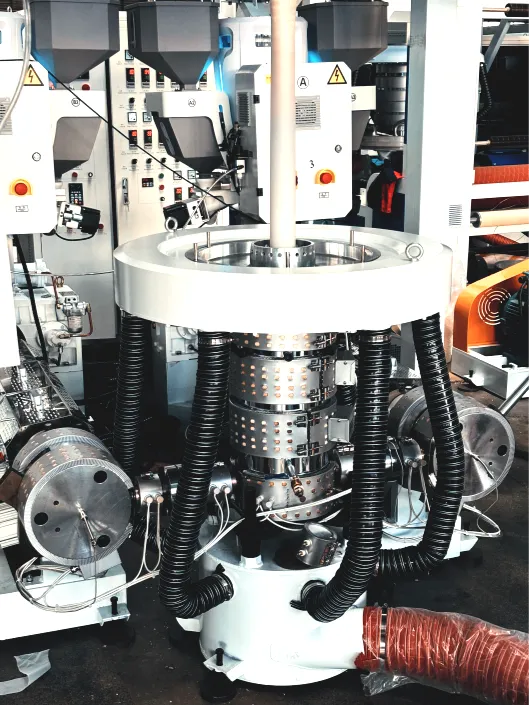

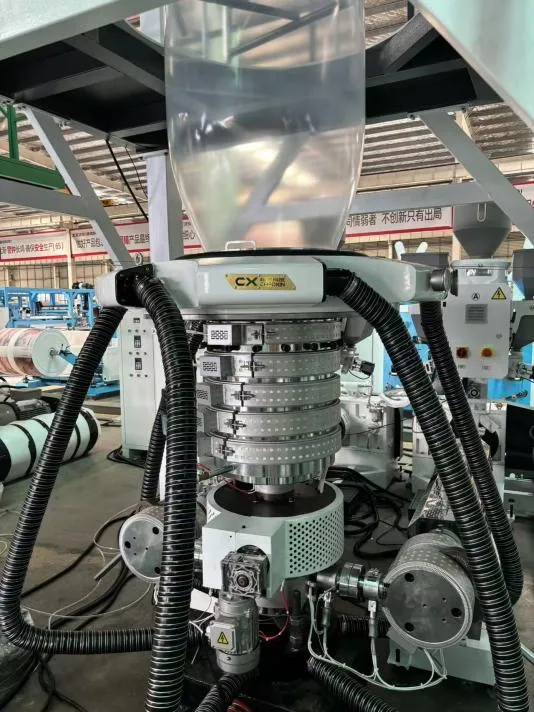

Usage: Provides rotational driving force for the die head to evenly distribute the extruded raw materials. Raw material NO.40 Steel Composed by die core, die body , die ring and heating ring Forging and heat treating, much higher strength and toughness than normal type die head Machining center is from Taiwan,  so the die head is higher accuracy Keep Film thickness average and equal , and film quality is shining. Custom produce, according to different type raw material , supply different design die head.

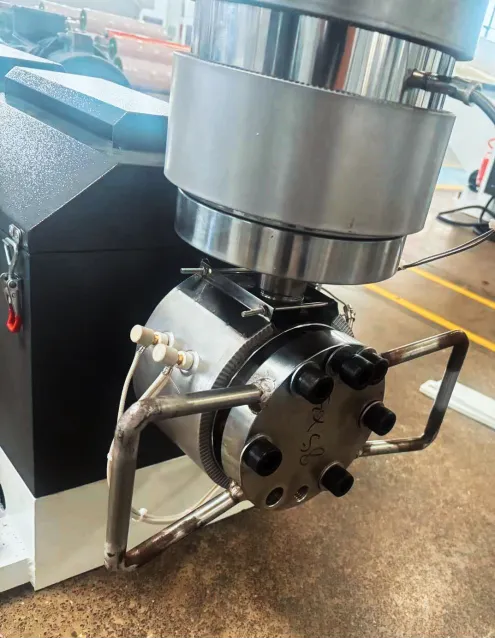

Usage:Used to replace the filter that intercepts impurities in the plasticized raw materials. Made by No.45 steel to filter the impurity from the raw material easier and faster to avoid the die head damaged and the film broken. Filter lines can be changed as per raw material’s request. Connect screw and die head tightly , avoid to leak raw material.

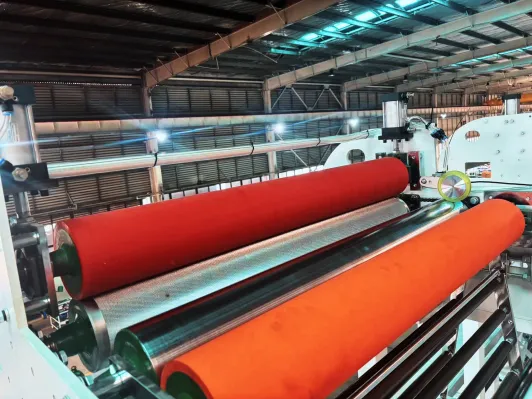

Usage:Pull and tract the film bubble. Type: horizontal 5 roller traction Traction rubber roller: Polyurethane material (long life, not easy to leak) Embossing roller: Computer engraving molding, clear lines and hand feeling well Steel roller:Full section chrome plating, long life, not easy to rust Traction:Equipped with a flattening roller, can make the film higher flatness, not easy to wrinkle Motor:Frequency control, stable speed, low energy consumption Plate : Mahogany material, to static electricity does not scratch Edge inserting device: custmized size

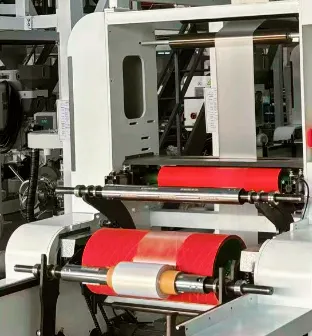

Usage: Semi-automatically complete film winding Winding type:Friction Torque motor to control the film rewinding speed and tightness, to make the film rewinding flat. Type: Single/Doublestation Friction type single winding Expansion force module: Torque motor control Air sharft: With a flattening roller to make the film even

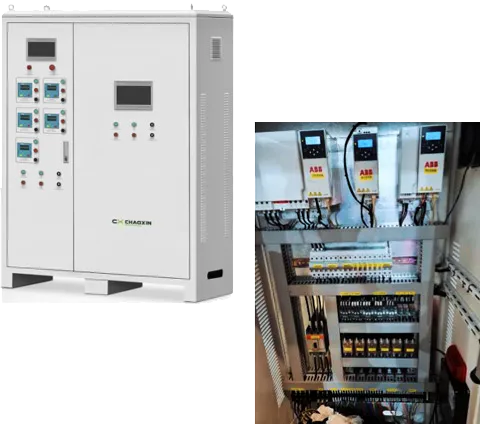

Usage: Integrated control of machine-related circuits. Separate electrical box to move easily. Mirror type high quality control plate to use for 15years, easy to clean and maintenance. All wires in the box have marked by letters, can connect by same letters, make electrical job easily and save time. All electrical parts are first class brand from China Install the lights in the box, to make the night job easily and humanity.
