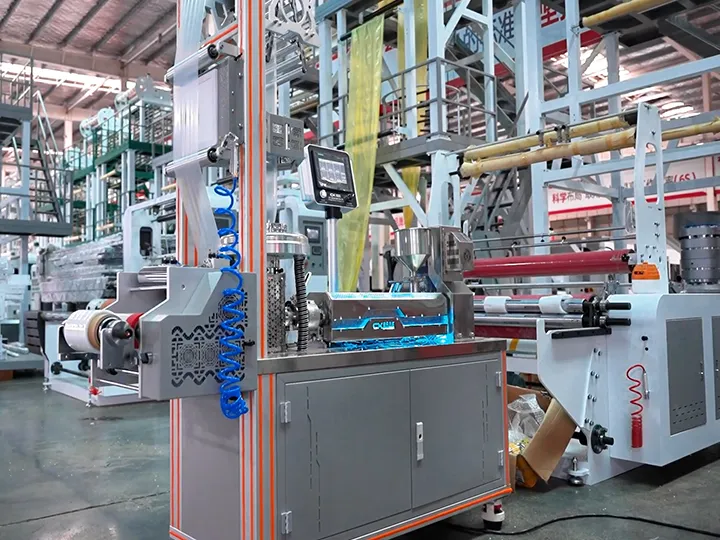

    CX-25 LABORATORY FILM BLOWING MACHINE

    CX-25 LABORATORY FILM BLOWING MACHINE

      Final Product

      Select

      Main Material

      Select

      Max Film width

      mm

      Max Thickness

      µm

      Capacity

      kg

      Inquire Now

      Quote Now

        Final Product:

        Main Material:

        Max Film width: mm

        Max Thickness: µm

        Capacity: kg

        [email protected]

        Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

        CE Certifed

        CHAOXIN has a number of international certifications to ensure product quality.

        Years Warranty

        CHAOXIN offers a 3 years warranty on parts

        Premium Service

        CHAOXIN provides you with the most comprehensive service.

        Customer Reviews

        All Reviews
        Description
        Application
        Specifications
        Comparision

        Application

        Spare Parts

        Key advantage of our high speed blown film machine is its exceptional stability. Each accessory is carefully selected to ensure perfect matching and compatibility, resulting in a highly stable performance.

        High-Precision Optional Devices

        Browse our optional equipment catalog to find the perfect upgrades and accessories tailored to your needs. With Chaoxin, you get top-tier products and dedicated service, ensuring seamless integration and optimal performance for your machinery.

        High-Precision Spare Parts

        Please browse our spare parts page to see our extensive catalog and easily order the spare parts you need. Choose Chaoxin for all your film blowing machine spare parts needs and experience the superior quality and service that makes the difference.

        Product Specifications

        MODELCX-25
        Suitable MaterialsHDPE, LDPE,PBAT
        Film Width100-220mm
        Film Thickness0.006-010mm
        Max Extrusion Output5-10KG/H
        Screw Diameter25mm
        Main Motor1.5KW
        Air Blowver0.25KW
        Total Power8KW

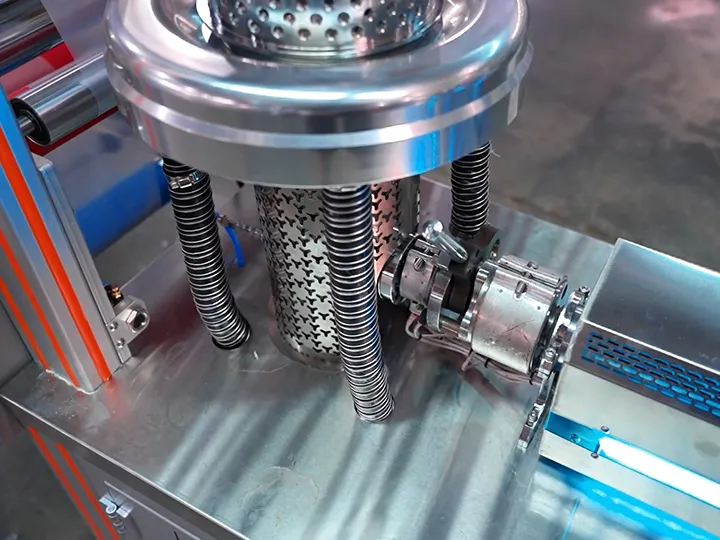

        Die Head100mm
        Roller width250mm
        Dimension/weight1.8*0.5*1.95m/280KG

        Comparision

        Category
        Chaoxin
        Others
        1. Screws

        Optimized screw raises the extrusion volume and using lifespan. Higher anti-corrupt and anti-grind ability.

        Customized screw keyway and 30:1 or 32:1 L/D double alloy screws with vacuum fire treatment.

        Only 28:1 or 30:1 L/D single alloy screw

        2. Motor

        The motor operates with frequency conversion, which shows its advantages in terms of energy saving.

        Imported from USA Honeywell, Germany SIEMENS,Switzerland ABB (with a three-year warranty)

        Other brands from China domestic market (with only one year warranty)

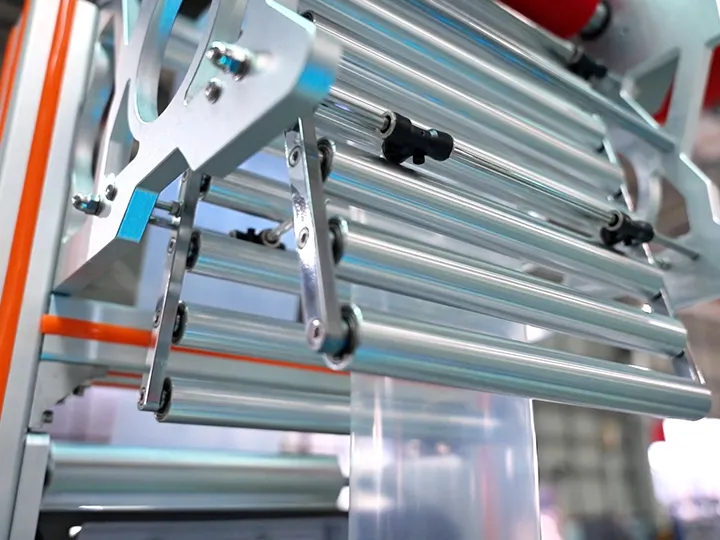

        3. Up-traction

        The up-traction determines the Traction stability, plastic film flatness and embossing effect.

        5-rollers traction, one embossing roller, one bending roller, one polyurethane roller and two traction rollers.

        Three rollers or four rollers traction with normal rubber.

        4. Cold Water Roller

        Chaoxin brand Unique

        Rapidly reduce the temperature, improve cooling efficiency and increase production, enhance film transparency, and reduce adhesion.

        Applied with traditional traction method that cannot provide better cooling for the film.

        5. Frame

        The thick frame makes the machine more durable and reliable.

        The square tubes of machines are all thickened with a diameter of 120mm.

        The mainstream in the market is 80mm in diameter

        6. Gear Box

        External circulation oil cooling system and hard tooth ensures the high working speed and lifespan of the gear joint.

        Xiaoshan brand hard tooth oil-cooled type, with filter, circulating oil and external cooling pump.

        Soft tooth gear box Other brands of from China domestic market without external oil cooling system.

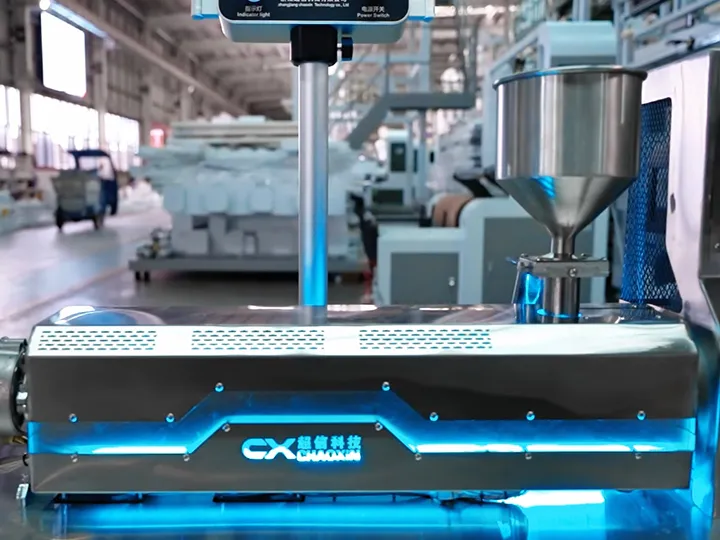

        7. Heating

        Advanced heating is much better in terms of life, heating speed and heat preservation effect than stainless steel heating.

        Aluminum heating, ceramic heating and more advanced infrared heating.

        Traditional stainless steel heating.

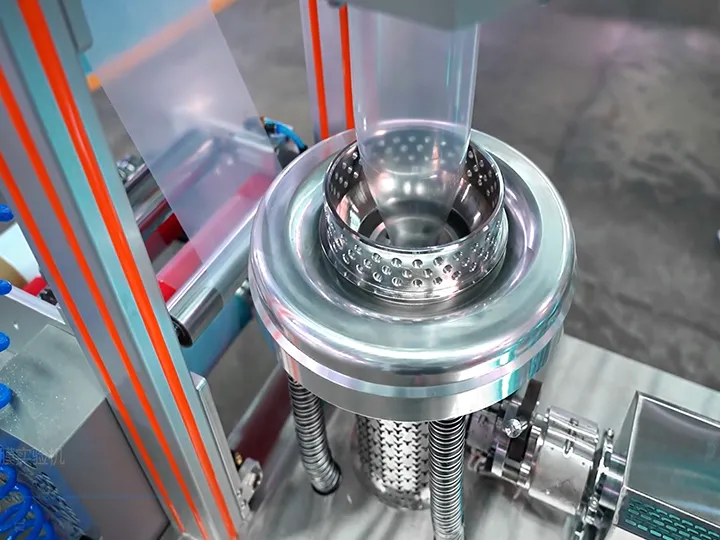

        8. Air ring

        The structurally optimized high-speed air ring reduces the wind resistance and make the change of wind volume gentle.

        Italian designed high-speed double/ triple vent air ring.

        Normal single, double vent air ring from domestic market.

        9. Guarantee

        Chaoxin creates a precedent of guarantee period in this industry, which enables clients to get trully hassle-free products & sevice.

        Main motor, fan, inverter, die head, gear box are guaranteed for three years.

        Other manufacturers basically have a one-year warranty.

        10. Production

        5S management standards and high-end machining center equip Chaoxin with precision production capabilities and ensure product standards and quality.

        5S management modern standardized workshop.

        Traditional and chaotic production management.
