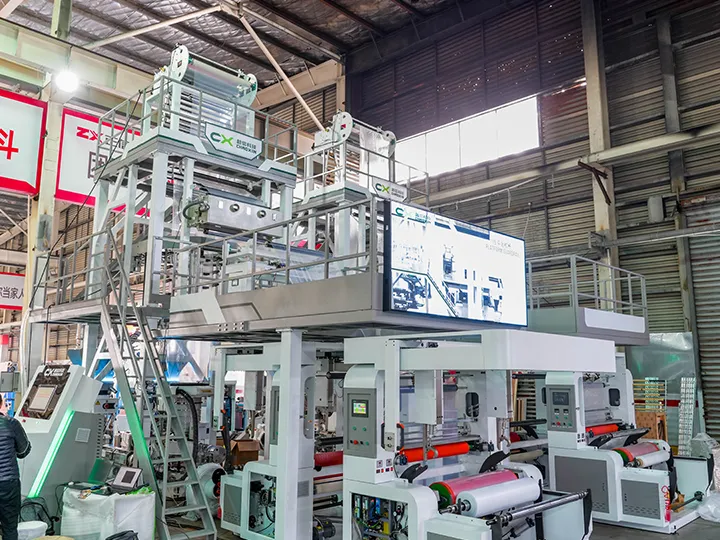

CX-ABA-1100-1600 HIGH SPEED AUTOMATIC ABA LAYERS LDPE/HDPE FILM BLOWING MACHINE (INTEGRATED SYSTEM)

CX-ABA-1100-1600 HIGH SPEED AUTOMATIC ABA LAYERS LDPE/HDPE FILM BLOWING MACHINE (INTEGRATED SYSTEM)

CE Certifed

CHAOXIN has a number of international certifications to ensure product quality.

Years Warranty

CHAOXIN offers a 3 years warranty on parts

Premium Service

CHAOXIN provides you with the most comprehensive service.

Customer Reviews

All Reviews

Nail Bliegh

10/15/2025

Machine running good so far,happy with machine

T*****m

10/15/2025

You are sooo good Rena l appreciate your hard workwith me to make me the best machine, l was not wrongwhen l decide to go with you...

P******s

07/22/2023

I would like to congratulate you on your excellent machine. We will work hard to use your machine to upgrade more equipment in my factory.

M****n

07/25/2025

Machine running good so far,happy with machine

R*****m

07/25/2025

You are truly proactive and knowledgeable. I hope we can become business partners soon.

M*****d

10/15/2025

Thanks so much for all,Your customers service isexcellent.

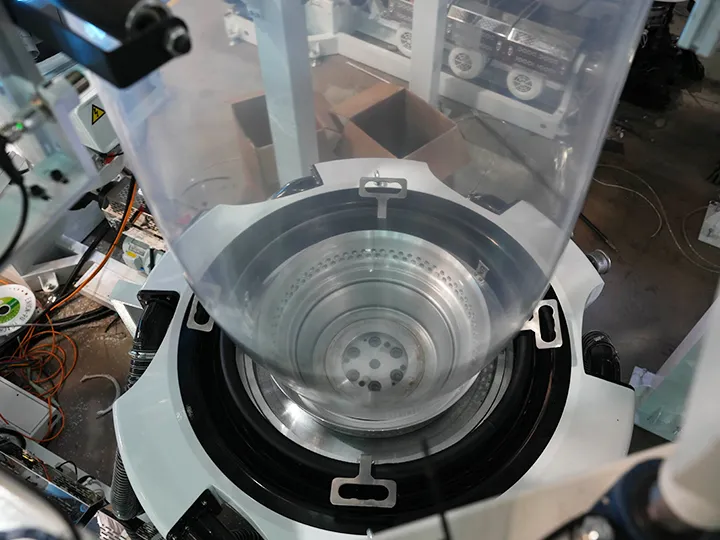

Center-fed three-layer co-extrusion in-mold

All feed ports are aligned on the same horizontal plane, utilizing three-layer in-mold compounding technology. 3D mold flow analysis ensures uniformity in the layered product structure. Combined with micro-adjustable structures, this design enhances thickness consistency across the product, accommodates diverse raw materials, minimizes melt residence time, and achieves high output. The system features user-friendly operation, strong self-cleaning capabilities, and easy maintenance.

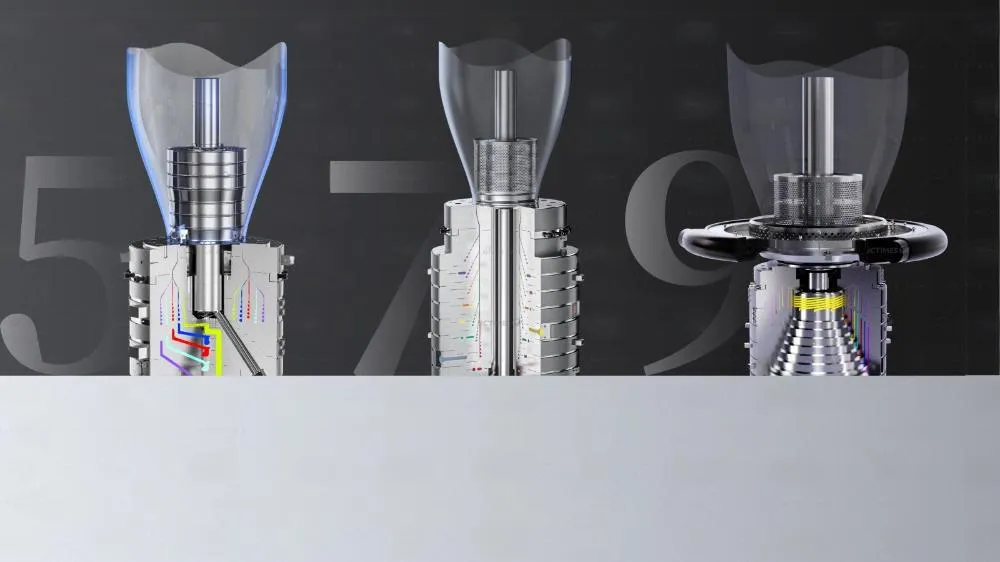

Multi-layer Co-extrusion Blown Film Die Blow Film Die

The core technology of multi-layer co-extrusion lies in achieving uniform composite distribution across each layer, demanding exceptionally high precision in die channel design and machining accuracy. Jingcheng integrates strengths in mold flow analysis, steel heat treatment, and precision machining to deliver customized solutions tailored to users’ specific production requirements—including material ratios per layer, process temperatures, screw dimensions, and other parameters.

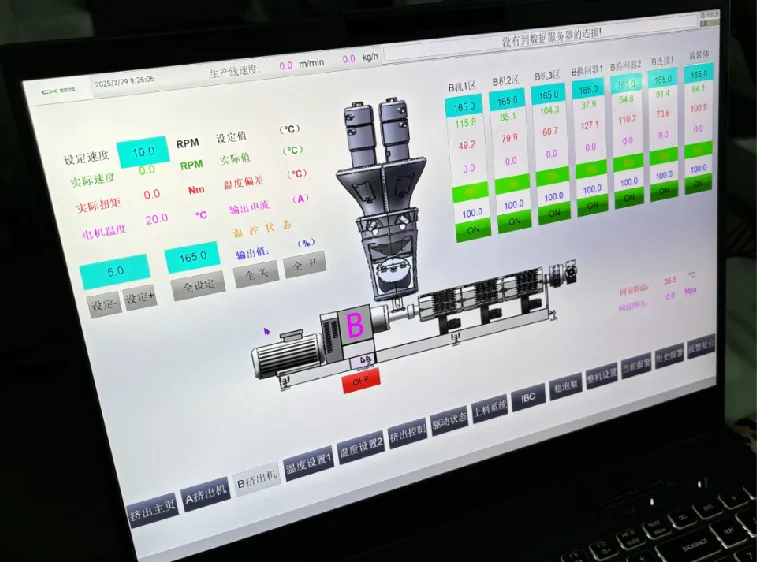

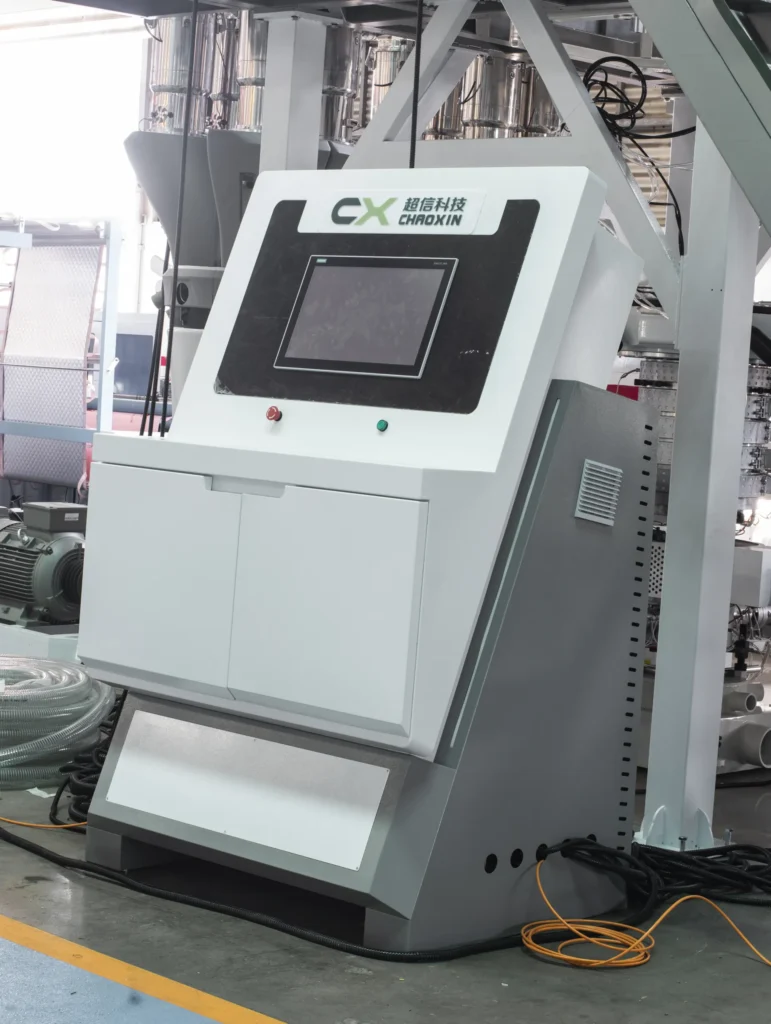

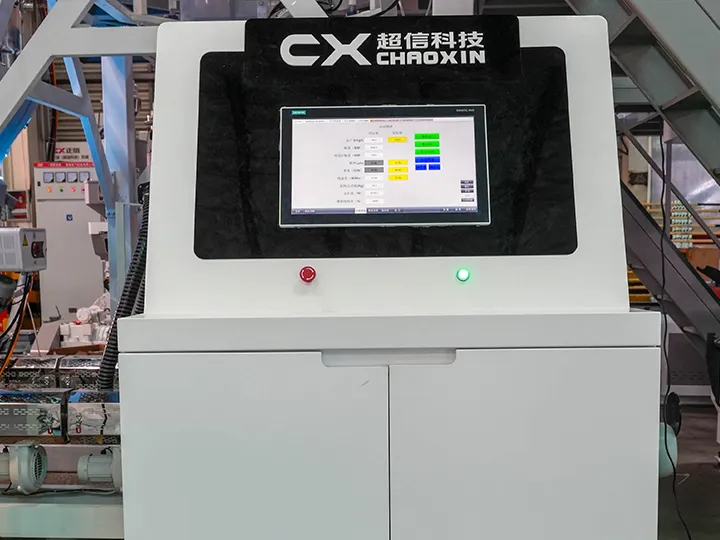

The Siemens integrated system is jointly developed by Chaoxin, Siemens, and Tifini. It has the following functions: Order storage: It can store order information for easy management and retrieval. Panel – based adjustment: The temperature, width, thickness, and formula can be adjusted through the panel. In addition, the panel can control the bubble – stabilizing ring and width measurement. One – click order switching: It enables quick switching between different orders with a single click, improving operational efficiency. Remote control and maintenance: It allows for remote operation and maintenance, facilitating convenient management and reducing on – site labor costs.

Application

Heat Shrink Film

Drum & Barrel Liners

Mattress Packaging

Garment Bag

Sufra Film

Product Specifications

MODEL	CX-ABA-1100	CX-ABA-1300	CX-ABA-1600
Suitable Materials	HDPE, LDPE, LLDPE	HDPE, LDPE, LLDPE	HDPE, LDPE, LLDPE
Film width	500-1000mm	600-1200mm	1000-1500mm
Film Thickness	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm
HDPE Max Extrusion Output	100KG	120KG	150KG
LDPE Max Extrusion Output	120KG	150KG	180KG
Screw Diameter	50mm2/55mm2	55mm2/60mm2	60mm2/65mm2
Screw L/D	30:1/32:1	30:1/32:1	30:1/32:1
Gear Box	173*2	180*2	200*2
Main Motor	18.5KW*2	22KW*2	30Kw*2
Air Blower	5.5KW	7.5KW	7.5KW
Total Power	70KW	80KW	110KW
HDPE Die Head	100mm	120mm	150mm
LDPE Die Head	250mm	280mm	350mm
Roller Width	1100mm	1300mm	1600mm
Dimension/Weight	65.57.2m/6T	6.55.57.2m/7T	768.5m/8T

Spare Parts

Key advantage of our high speed blown film machine is its exceptional stability. Each accessory is carefully selected to ensure perfect matching and compatibility, resulting in a highly stable performance.

High-Precision Optional Devices

Browse our optional equipment catalog to find the perfect upgrades and accessories tailored to your needs. With Chaoxin, you get top-tier products and dedicated service, ensuring seamless integration and optimal performance for your machinery.

High-Precision Spare Parts

Please browse our spare parts page to see our extensive catalog and easily order the spare parts you need. Choose Chaoxin for all your film blowing machine spare parts needs and experience the superior quality and service that makes the difference.

Comparision

1. Screws

Optimized screw raises the extrusion volume and using lifespan. Higher anti-corrupt and anti-grind ability.

Optimized screw raises the extrusion volume and using lifespan. Higher anti-corrupt and anti-grind ability.

Only 28:1 or 30:1 L/D single alloy screw

2. Motor

The motor operates with frequency conversion, which shows its advantages in terms of energy saving.

Imported from American GE or Germany SIEMENS (with a three-year warranty)

Other brands from China domestic market (with only one year warranty)

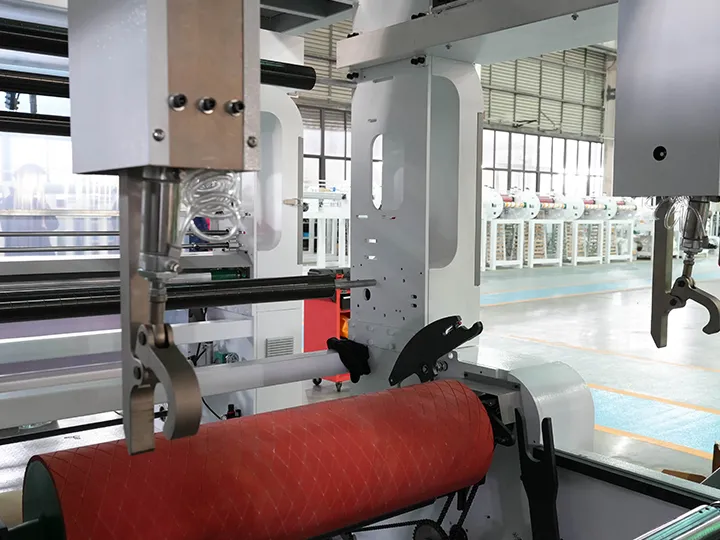

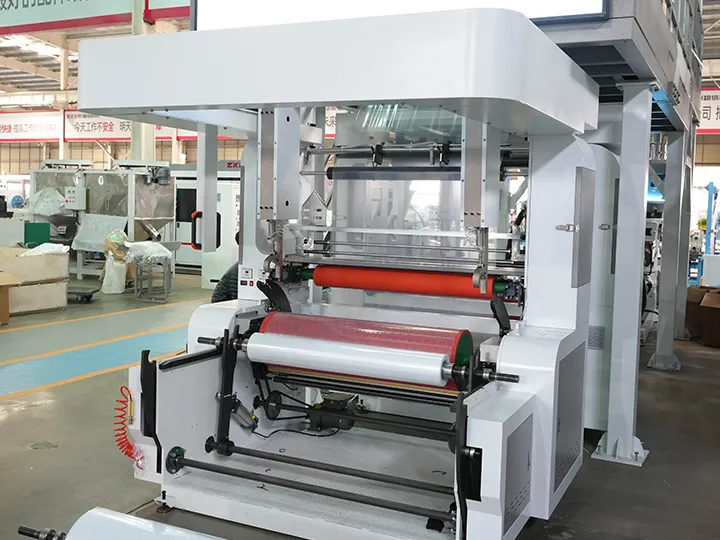

3. Up-traction

The up-traction determines the Traction stability, plastic film flatness and embossing effect.

5-rollers traction, one embossing roller, one bending roller, one polyurethane roller and two traction rollers.

Three rollers or four rollers traction with normal rubber.

4. Frame

The thick frame makes the machine more durable and reliable.

The square tubes of machines are all thickened with a diameter of 120mm.

The mainstream in the market is 80mm in diameter

5. Gear Box

OptimizedaExternal circulation oil cooling system and hard tooth ensures the high working speed and lifespan of the gear joint. screw raises the extrusion volume and using lifespan. Higher anti-corrupt and anti-grind ability.
